ARTIC TEC
WALL MOUNTED IP20 BATTEN
Product Overview
- Suitable for office, school, or indoor commercial application
- Replace LED T5 fixture
- Milk cover — fixture is not damaged under pressure
- Low power consumption
- 3 years warranty, IP20, 5 years optional
- Area application: Supermarket, Production Line, Office, Restaurant and Hotel.
- Install: Surface mounted.
Highlight
Indoor batten
Suitable for office, school, or indoor commercial application

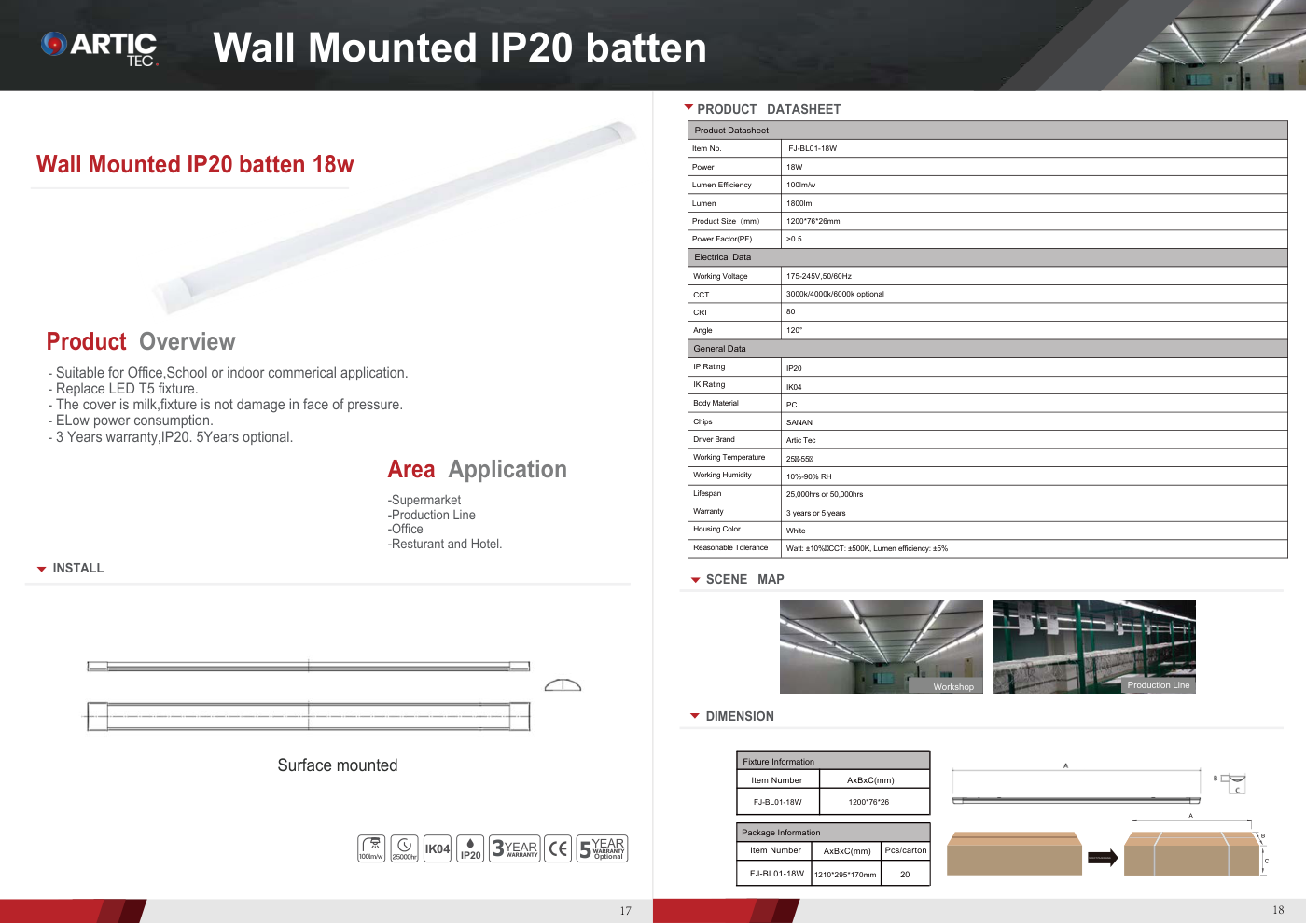

Product Datasheet
| Item No. | FJ-BL01-18W |
|---|---|
| Power | 18W |
| Lumen Efficiency | 100lm/w |
| Lumen | 1800lm |
| Product Size | 1200×76×26 mm |
| Power Factor (PF) | >0.5 |
| Working Voltage | 175-245V, 50/60Hz |
| CCT | 3000k/4000k/6000k optional |
| CRI | 80 |
| Angle | 120° |
| IP Rating | IP20 |
| IK Rating | IK04 |
| Body Material | PC |
| Chips | SANAN |
| Driver Brand | Artic Tec |
| Working Temperature | -25°C ~ 55°C |
| Working Humidity | 10%-90% RH |
| Lifespan | 25,000hrs or 50,000hrs |
| Warranty | 3 years or 5 years |
| Housing Color | White |
| Reasonable Tolerance | Watt: ±10%; CCT: ±500K; Lumen efficiency: ±5% |
Dimension
Fixture information · AxBxC (mm)
| FJ-BL01-18W | 1200×76×26 |
|---|
Package information · AxBxC (mm) · PCS/carton
| FJ-BL01-18W | 1210×295×170 | 20 |
|---|
