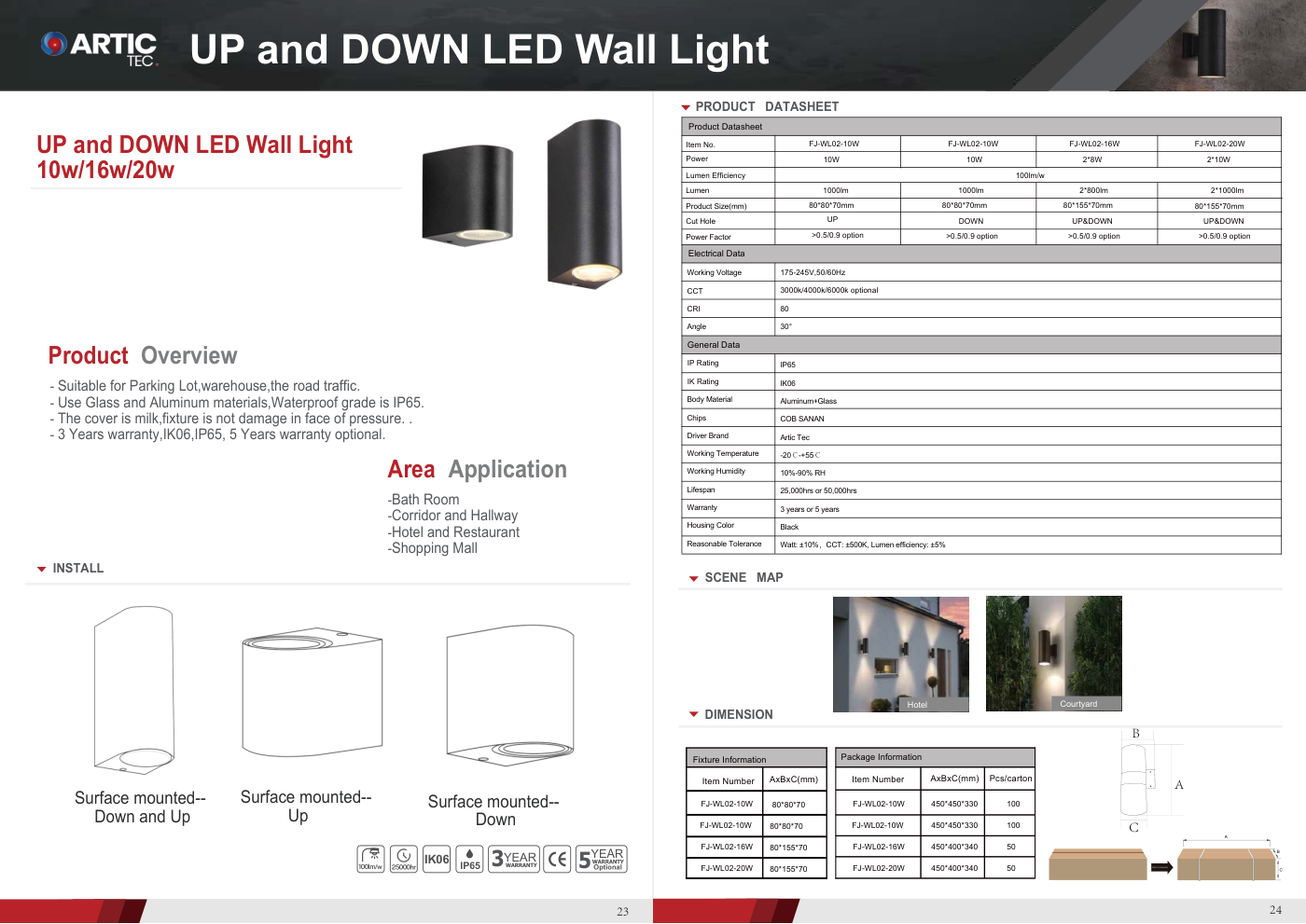

UP and DOWN LED Wall Light 23 — technical sheet

ARTIC TEC

UP AND DOWN LED WALL LIGHT 10W/16W/20W

Glass and aluminum materials, waterproof grade IP65
Milk cover — fixture is not damaged under pressure
3 years warranty, IK06, IP65, 5 years warranty optional
Area application: Bath Room, Corridor and Hallway, Hotel and Restaurant, Shopping Mall.
Install: Surface mounted.

Highlight

Glass and aluminum materials, waterproof grade IP65

Item No.	FJ-WL02-10W (UP)	FJ-WL02-10W (DOWN)	FJ-WL02-16W	FJ-WL02-20W
Power	10W	10W	2×8W	2×10W
Lumen Efficiency	100lm/w	100lm/w	100lm/w	100lm/w
Lumen	1000lm	1000lm	2×800lm	2×1000lm
Product Size	80×80×70 mm	80×80×70 mm	80×155×70 mm	80×155×70 mm
Beam	UP	DOWN	UP & DOWN	UP & DOWN
Power Factor (PF)	>0.5/0.9 option	>0.5/0.9 option	>0.5/0.9 option	>0.5/0.9 option
Working Voltage	175-245V, 50/60Hz	175-245V, 50/60Hz	175-245V, 50/60Hz	175-245V, 50/60Hz
CCT	3000k/4000k/6000k optional	3000k/4000k/6000k optional	3000k/4000k/6000k optional	3000k/4000k/6000k optional
CRI	80	80	80	80
Angle	30°	30°	30°	30°
IP Rating	IP65	IP65	IP65	IP65
IK Rating	IK06	IK06	IK06	IK06
Body Material	Aluminum+Glass	Aluminum+Glass	Aluminum+Glass	Aluminum+Glass
Chips	COB SANAN	COB SANAN	COB SANAN	COB SANAN
Driver Brand	Artic Tec	Artic Tec	Artic Tec	Artic Tec
Working Temperature	-20°C ~ +55°C	-20°C ~ +55°C	-20°C ~ +55°C	-20°C ~ +55°C
Working Humidity	10%-90% RH	10%-90% RH	10%-90% RH	10%-90% RH
Lifespan	25,000hrs or 50,000hrs	25,000hrs or 50,000hrs	25,000hrs or 50,000hrs	25,000hrs or 50,000hrs
Warranty	3 years or 5 years	3 years or 5 years	3 years or 5 years	3 years or 5 years
Housing Color	Black	Black	Black	Black
Reasonable Tolerance	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%

Fixture information · AxBxC (mm)

Package information · AxBxC (mm) · PCS/carton
