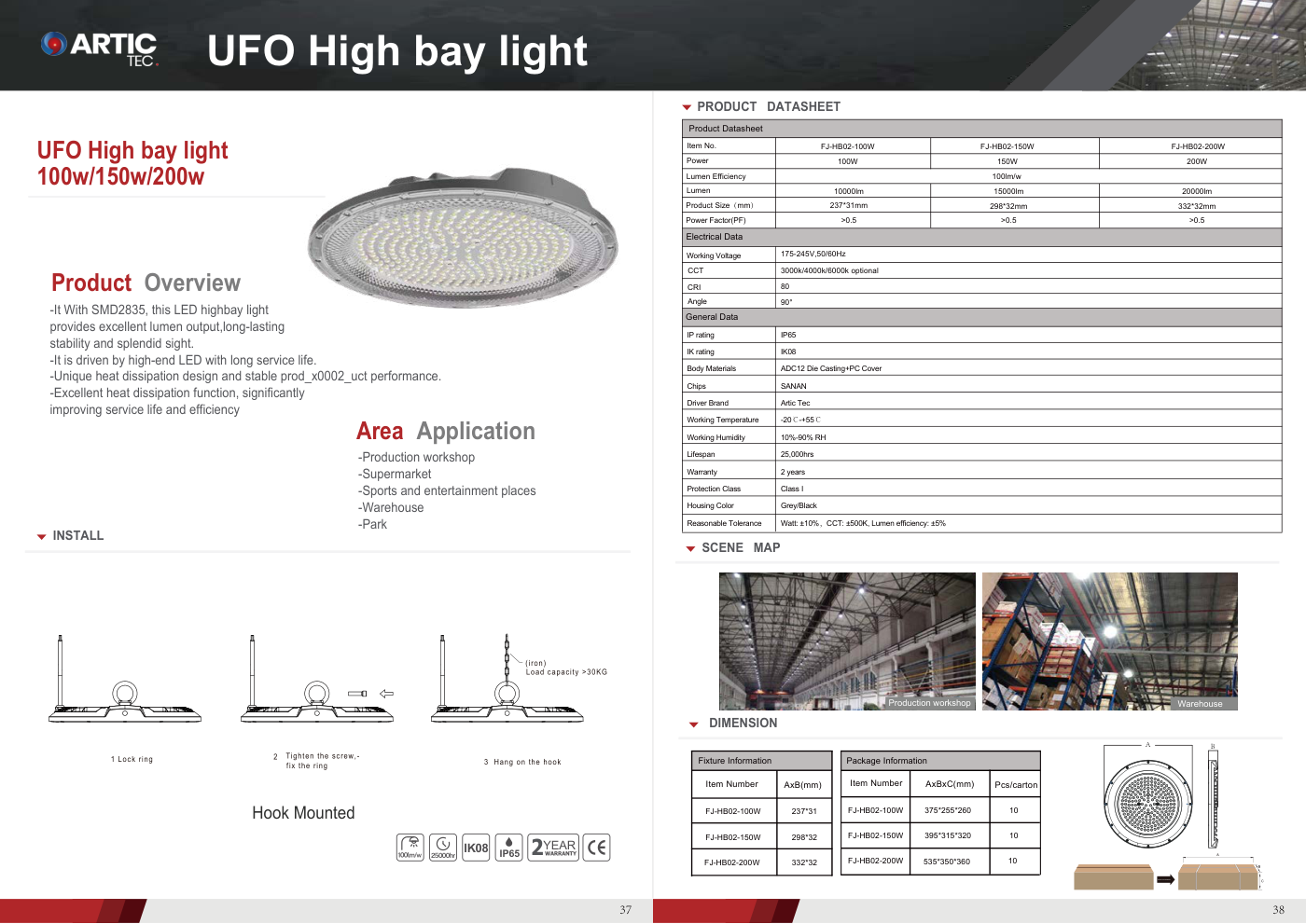

UFO High bay light 37 — technical sheet

ARTIC TEC

UFO HIGH BAY LIGHT 100W/150W/200W

SMD2835 highbay with excellent lumen output and long-lasting stability
Driven by high-end LED with long service life
Unique heat dissipation design and stable product performance
Area application: Production workshop, Supermarket, Sports and entertainment places, Warehouse, Park.
Install: Hook mounted — load capacity >30KG.

Highlight

SMD2835 highbay with excellent lumen output and long-lasting stability

Item No.	FJ-HB02-100W	FJ-HB02-150W	FJ-HB02-200W
Power	100W	150W	200W
Lumen Efficiency	100lm/w	100lm/w	100lm/w
Lumen	10000lm	15000lm	20000lm
Product Size	237×31 mm	298×32 mm	332×32 mm
Power Factor (PF)	>0.5	>0.5	>0.5
Working Voltage	175-265V, 50/60Hz	175-265V, 50/60Hz	175-265V, 50/60Hz
CCT	3000k/4000k/6000k optional	3000k/4000k/6000k optional	3000k/4000k/6000k optional
CRI	80	80	80
Angle	90°	90°	90°
IP Rating	IP65	IP65	IP65
IK Rating	IK08	IK08	IK08
Body Material	ADC12 Die Casting+PC Cover	ADC12 Die Casting+PC Cover	ADC12 Die Casting+PC Cover
Chips	SANAN	SANAN	SANAN
Driver Brand	Artic Tec	Artic Tec	Artic Tec
Working Temperature	-20°C ~ +55°C	-20°C ~ +55°C	-20°C ~ +55°C
Working Humidity	10%-90% RH	10%-90% RH	10%-90% RH
Lifespan	25,000hrs	25,000hrs	25,000hrs
Warranty	2 years	2 years	2 years
Protection Class	Class I	Class I	Class I
Housing Color	Grey/Black	Grey/Black	Grey/Black
Reasonable Tolerance	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%

Fixture information · AxBxC (mm)

Package information · AxBxC (mm) · PCS/carton
