LED Waterproof Light 13

Full datasheet — specifications, item numbers, and dimensions

ARTIC TEC

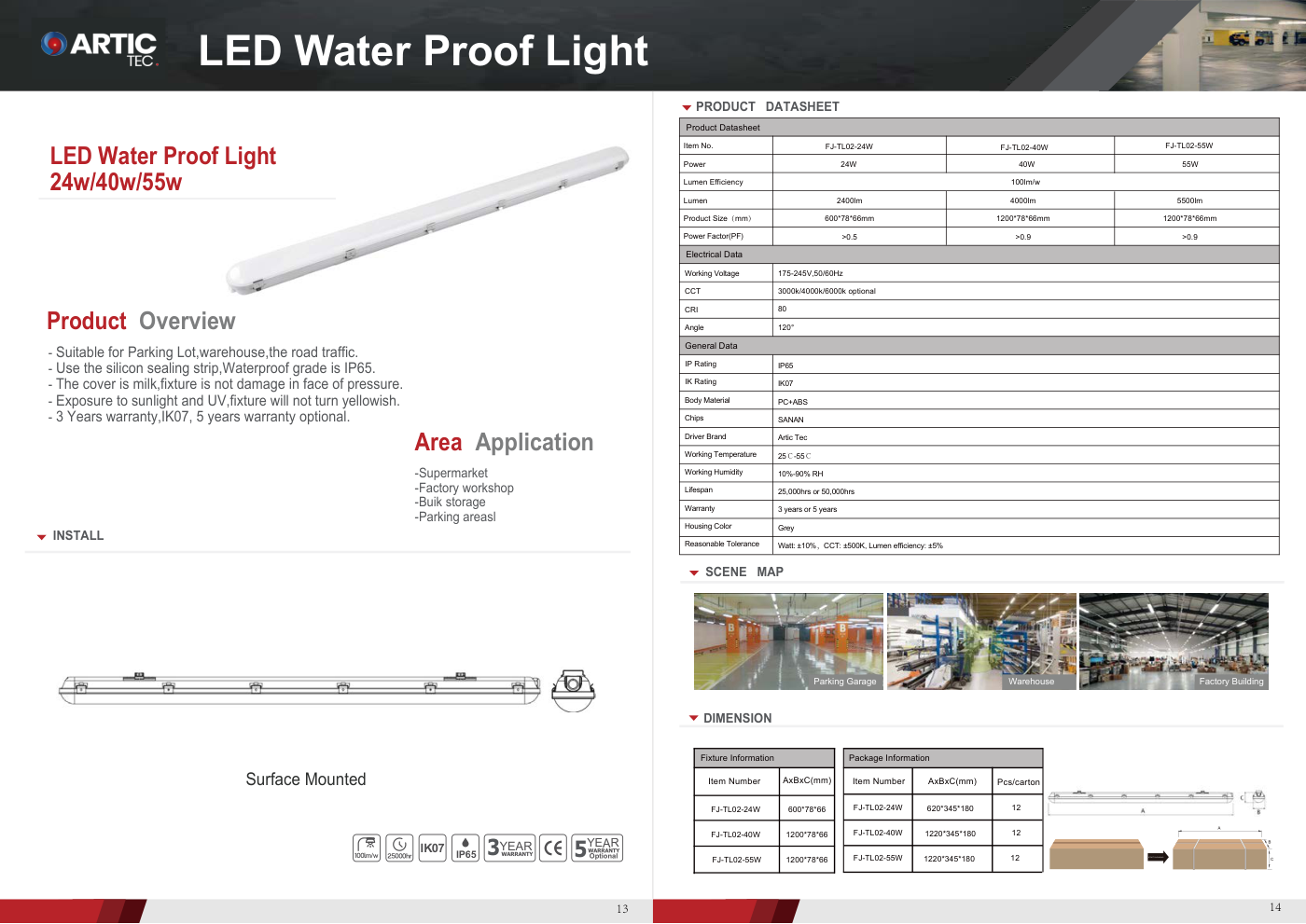

LED WATER PROOF LIGHT 24W/40W/55W

Product Overview

  • Suitable for parking lots, warehouses, and road traffic
  • Silicon sealing strip, waterproof grade IP65
  • Milk cover — fixture is not damaged under pressure
  • Will not turn yellowish under sunlight and UV
  • 3 years warranty, IK07, 5 years warranty optional
  • Area application: Supermarket, Factory workshop, Bulk storage, Parking areas.
  • Install: Surface mounted.
LED Waterproof Light 13

Highlight

IP65 linear

Suitable for parking lots, warehouses, and road traffic

Product Datasheet

Item No.FJ-TL02-24WFJ-TL02-40WFJ-TL02-55W
Power24W40W55W
Lumen Efficiency100lm/w100lm/w100lm/w
Lumen2400lm4000lm5500lm
Product Size600×78×66 mm1200×78×66 mm1200×78×66 mm
Power Factor (PF)>0.5>0.9>0.9
Working Voltage175-245V, 50/60Hz175-245V, 50/60Hz175-245V, 50/60Hz
CCT3000k/4000k/6000k optional3000k/4000k/6000k optional3000k/4000k/6000k optional
CRI808080
Angle120°120°120°
IP RatingIP65IP65IP65
IK RatingIK07IK07IK07
Body MaterialPC+ABSPC+ABSPC+ABS
ChipsSANANSANANSANAN
Driver BrandArtic TecArtic TecArtic Tec
Working Temperature-25°C ~ 55°C-25°C ~ 55°C-25°C ~ 55°C
Working Humidity10%-90% RH10%-90% RH10%-90% RH
Lifespan25,000hrs or 50,000hrs25,000hrs or 50,000hrs25,000hrs or 50,000hrs
Warranty3 years or 5 years3 years or 5 years3 years or 5 years
Housing ColorGreyGreyGrey
Reasonable ToleranceWatt ±10%, CCT: ±500K, Lumen efficiency: ±5%Watt ±10%, CCT: ±500K, Lumen efficiency: ±5%Watt ±10%, CCT: ±500K, Lumen efficiency: ±5%

Dimension

Fixture information · AxBxC (mm)

FJ-TL02-24W600×78×66
FJ-TL02-40W1200×78×66
FJ-TL02-55W1200×78×66

Package information · AxBxC (mm) · PCS/carton

FJ-TL02-24W620×345×18012
FJ-TL02-40W1220×345×18012
FJ-TL02-55W1220×345×18012
