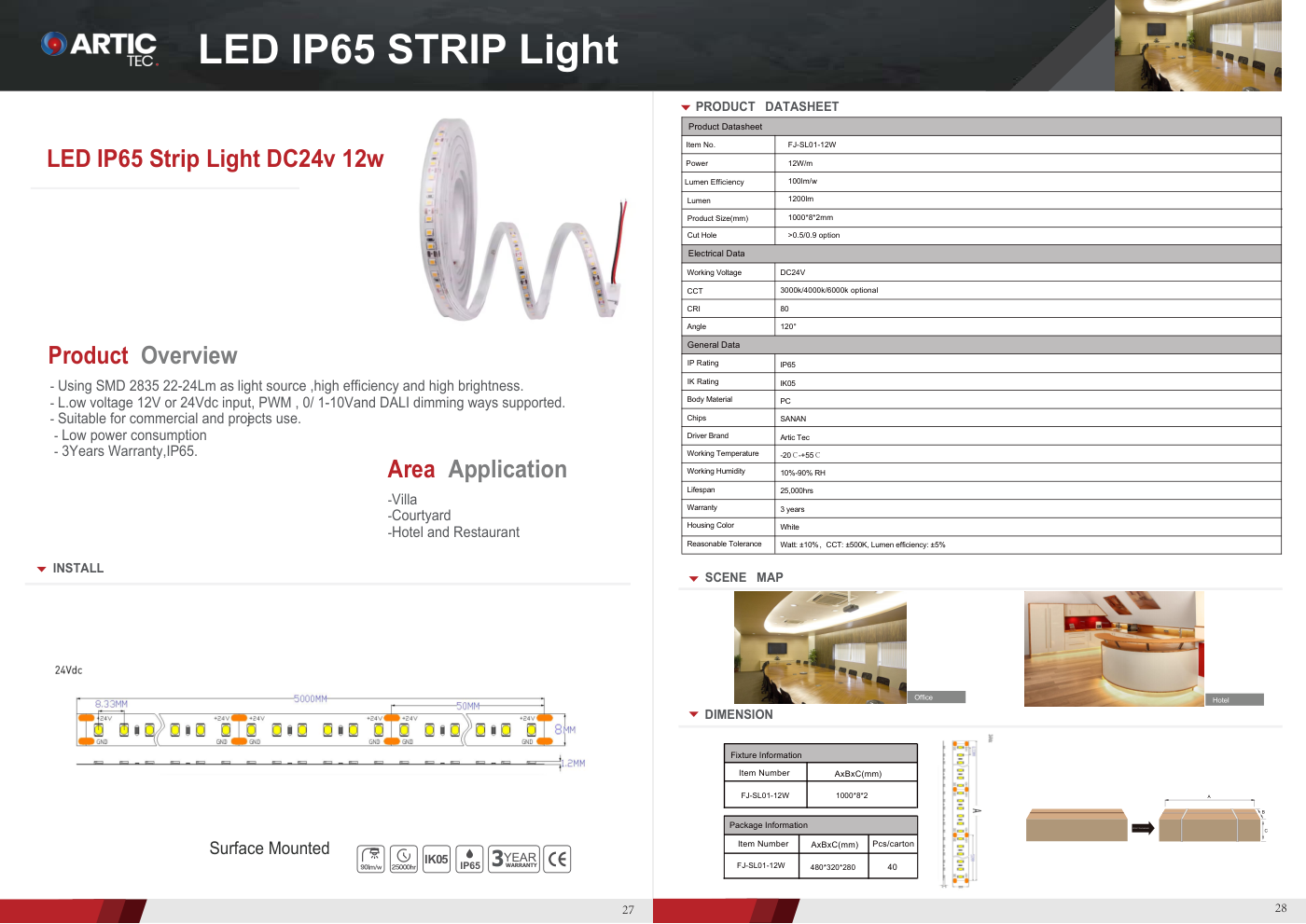

ARTIC TEC
LED IP65 STRIP LIGHT DC24V 12W
Product Overview
- SMD 2835 22-24Lm light source, high efficiency and brightness
- Low voltage 12V or 24Vdc input; PWM, 0/1-10V and DALI dimming supported
- Suitable for commercial and project use
- Low power consumption
- 3 years warranty, IP65
- Area application: Villa, Courtyard, Hotel and Restaurant.
- Install: Surface mounted.
Highlight
IP65 strip
SMD 2835 22-24Lm light source, high efficiency and brightness
Product Datasheet
| Item No. | FJ-SL01-12W |
|---|---|
| Power | 12W/m |
| Lumen Efficiency | 100lm/w |
| Lumen | 1200lm |
| Product Size | 1000×8×2 mm |
| Power Factor (PF) | >0.5/0.9 option |
| Working Voltage | DC24V |
| CCT | 3000k/4000k/6000k optional |
| CRI | 80 |
| Angle | 120° |
| IP Rating | IP65 |
| IK Rating | IK05 |
| Body Material | PC |
| Chips | SANAN |
| Driver Brand | Artic Tec |
| Working Temperature | -20°C ~ +55°C |
| Working Humidity | 10%-90% RH |
| Lifespan | 25,000hrs |
| Warranty | 3 years |
| Housing Color | White |
| Reasonable Tolerance | Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5% |
Dimension
Fixture information · AxBxC (mm)
| FJ-SL01-12W | 1000×8×2 |
|---|
Package information · AxBxC (mm) · PCS/carton
| FJ-SL01-12W | 480×320×280 | 40 |
|---|
