ARTIC TEC
LED CORNER LIGHT
Product Overview
- Elegant design
- Powder coated anthracite finish
- Ideal to brighten up outside space
- Suitable for commercial, shop and store use
- Low power consumption
- 3 years warranty, IP65, 5 years optional
- Area application: Stairs, Corridor, Bath Room, Hotel.
- Install: Recessed.
Highlight
Recessed IP65
Elegant design

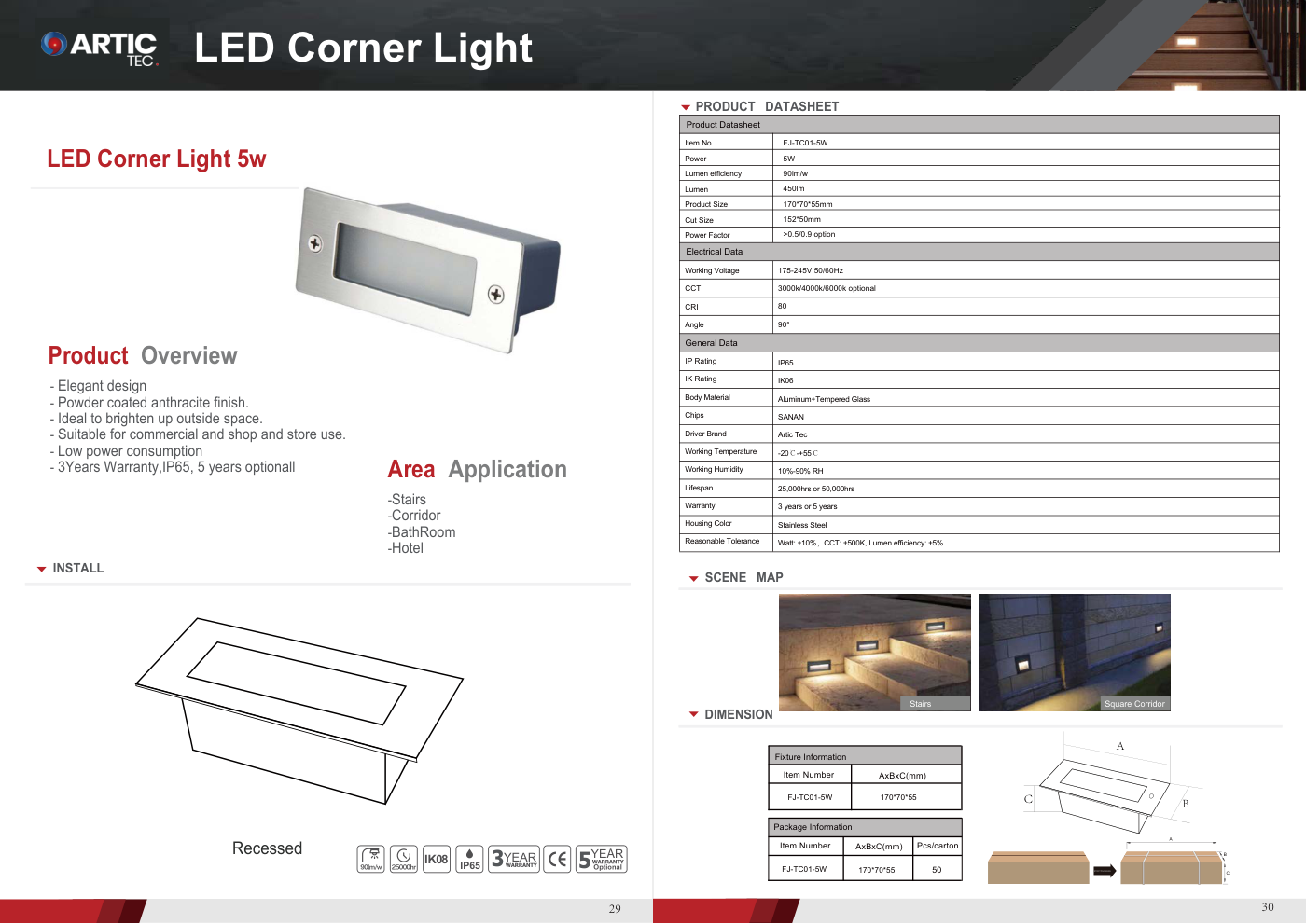

Product Datasheet
| Item No. | FJ-TC01-5W |
|---|---|
| Power | 5W |
| Lumen Efficiency | 90lm/w |
| Lumen | 450lm |
| Product Size | 170×70×55 mm |
| Cut Size | 152×50 mm |
| Power Factor (PF) | >0.5/0.9 option |
| Working Voltage | 175-245V, 50/60Hz |
| CCT | 3000k/4000k/6000k optional |
| CRI | 80 |
| Angle | 90° |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Body Material | Aluminum+Tempered Glass |
| Chips | SANAN |
| Driver Brand | Artic Tec |
| Working Temperature | -20°C ~ +55°C |
| Working Humidity | 10%-90% RH |
| Lifespan | 25,000hrs or 50,000hrs |
| Warranty | 3 years or 5 years |
| Housing Color | Stainless Steel |
| Reasonable Tolerance | Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5% |
Dimension
Fixture information · AxBxC (mm)
| FJ-TC01-5W | 170×70×55 |
|---|
Package information · AxBxC (mm) · PCS/carton
| FJ-TC01-5W | 170×70×55 | 50 |
|---|
