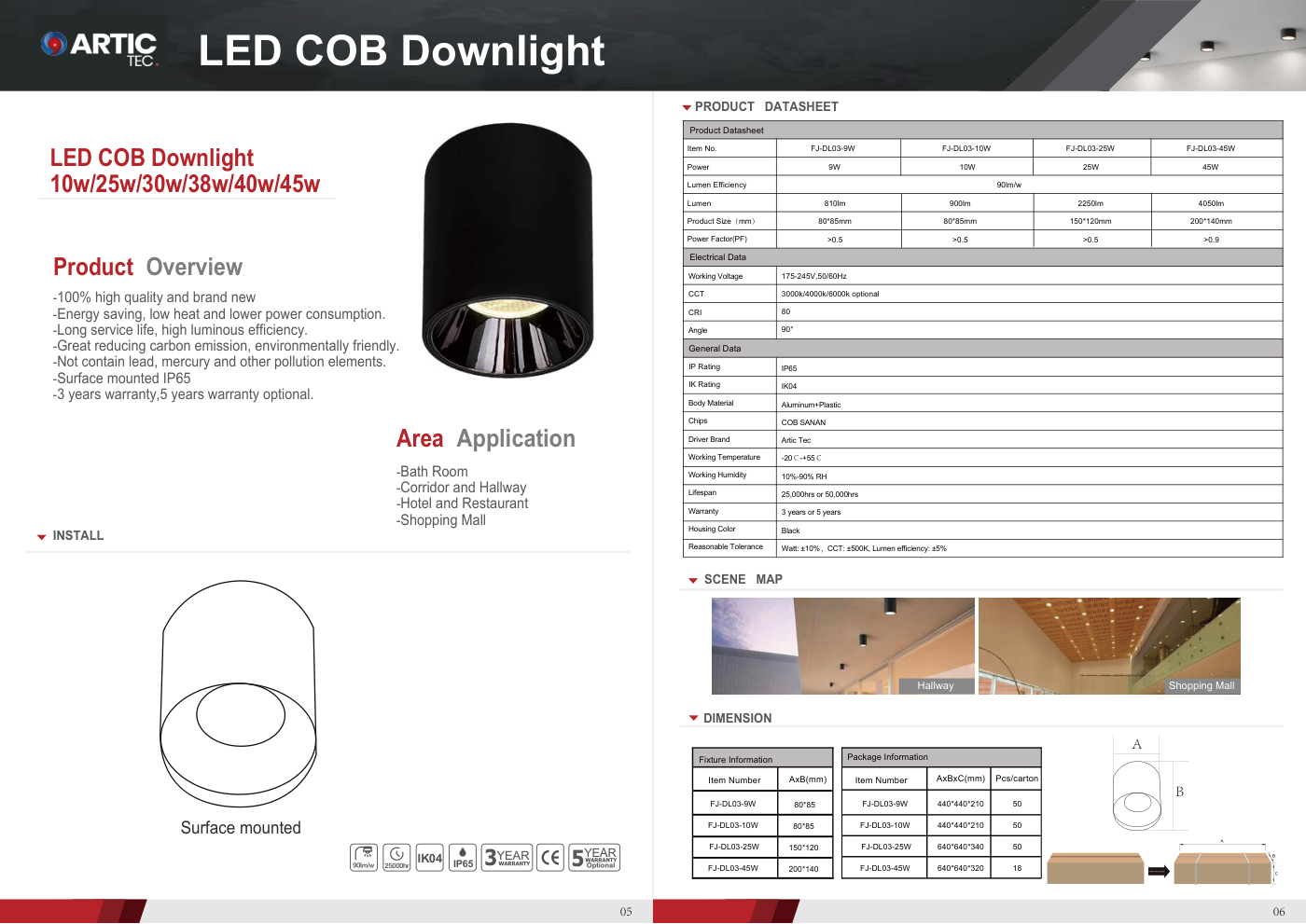

LED COB Downlight 05 — technical sheet

ARTIC TEC

LED COB DOWNLIGHT 9W–45W

100% high quality and brand new
Energy saving, low heat and lower power consumption
Long service life, high luminous efficiency
Does not contain lead, mercury and other pollution elements
Surface mounted IP65
3 years warranty, 5 years warranty optional
Area application: Bath Room, Corridor and Hallway, Hotel and Restaurant, Shopping Mall.
Install: Surface mounted.

Highlight

100% high quality and brand new

Item No.	FJ-DL03-9W	FJ-DL03-10W	FJ-DL03-25W	FJ-DL03-45W
Power	9W	10W	25W	45W
Lumen Efficiency	90lm/w	90lm/w	90lm/w	90lm/w
Lumen	810lm	900lm	2250lm	4050lm
Product Size	80×85 mm	80×85 mm	150×120 mm	200×140 mm
Power Factor (PF)	>0.5	>0.5	>0.5	>0.9
Working Voltage	175-245V, 50/60Hz	175-245V, 50/60Hz	175-245V, 50/60Hz	175-245V, 50/60Hz
CCT	3000k/4000k/6000k optional	3000k/4000k/6000k optional	3000k/4000k/6000k optional	3000k/4000k/6000k optional
CRI	80	80	80	80
Angle	90°	90°	90°	90°
IP Rating	IP65	IP65	IP65	IP65
IK Rating	IK04	IK04	IK04	IK04
Body Material	Aluminum+Plastic	Aluminum+Plastic	Aluminum+Plastic	Aluminum+Plastic
Chips	COB SANAN	COB SANAN	COB SANAN	COB SANAN
Driver Brand	Artic Tec	Artic Tec	Artic Tec	Artic Tec
Working Temperature	-20°C ~ +55°C	-20°C ~ +55°C	-20°C ~ +55°C	-20°C ~ +55°C
Working Humidity	10%-90% RH	10%-90% RH	10%-90% RH	10%-90% RH
Lifespan	25,000hrs or 50,000hrs	25,000hrs or 50,000hrs	25,000hrs or 50,000hrs	25,000hrs or 50,000hrs
Warranty	3 years or 5 years	3 years or 5 years	3 years or 5 years	3 years or 5 years
Housing Color	Black	Black	Black	Black
Reasonable Tolerance	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%	Watt: ±10%, CCT: ±500K, Lumen efficiency: ±5%

Fixture information · AxBxC (mm)

Package information · AxBxC (mm) · PCS/carton
